Approval Design
The initial stage of a project (once all current architects drawings and project specifications are received) is creating the approval drawings. This typically consists of 4 drawings; Soleplate Layout, GF Layout, FF Layout & Sections. The main purpose of these drawings is to confirm the design is replicated as closely as possible to the architects whilst adjusting key structural areas such as the walls, floor & roof build-up to suit the final specification and on-site element sizes.
This stage will also flag up any none standard design requirements early on in the process to assist with the final engineered solution.
Approval Confirmation
Once the approval drawings are complete they are issued for a final review. By who varies from project to project, but be it an architect or a self-builder it is critical the design is reviewed carefully as this is forming the basis for the fabrication information and ultimately what will be built on site.
Final Design
Once the approval design is confirmed and the project engineering is complete, the final design package can be put together. The process can vary for a number of reasons, but usually this would start with roof & floor layouts being created specifically with post & beam locations working to the engineered sizes required. From this any steel detailing required is based, using the latest Autodesk Advance Steel

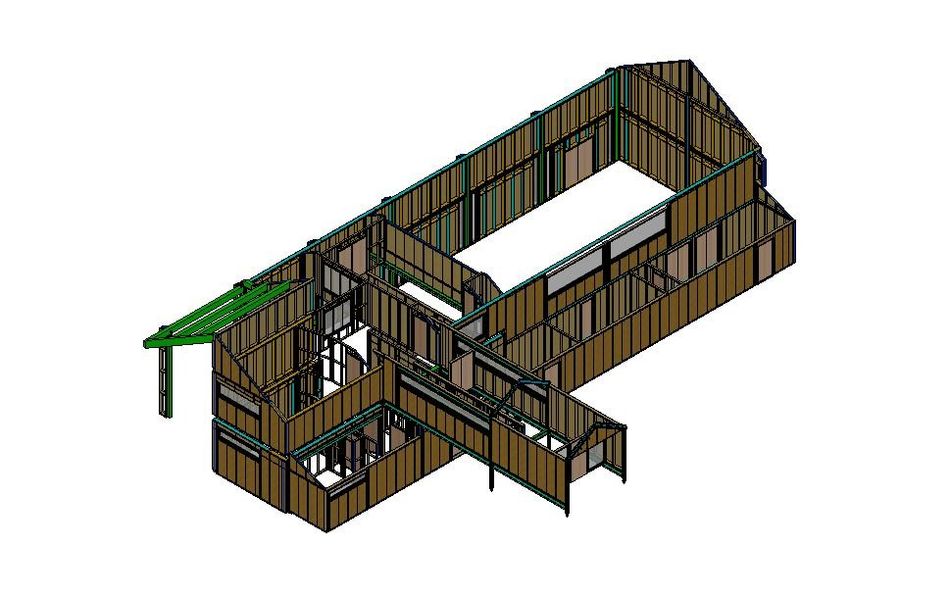

software. This generates an accurate 3D model that can be over laid to assist with the final timber frame detailing. The timber frame design is done using a specialist bolt-on to Autodesks AutoCAD Architecture, Mitek's Woodengine.
Idea
We bring ideas to life. That is both our goal, and our vision, so we make every effort to deeply envision your idea.
Design
The design process at Mendip Timber Designs involves several stages, from initial Approval Drawings, Design Development to Final Construction & Fabrication Design.
Accuracy
Using CAD and the latest timber frame software available ensures Mendip Timber Designs can provide designs to be accurate to within a millimeter. We take accuracy very seriously.
Satisfaction
Your opinion & satisfaction matter throughout the process. From the very first line drawn, to the last.
